Archive for March, 2009
First Hardware Order
Posted by Alex Fefer in Engineering on March 24, 2009
Time for a technical post – we thought you might want a change of pace from all the documents and presentations. :)
The first components – our flight computer and development carrier board – have just been ordered from Toradex AG in Germany. We’re using the Marvell/Intel XScale PXA320 embedded processor (which has low power consumption and can handle temperatures down to -45 degrees) that comes on a convenient SODIMM module. The idea is to plug the CPU module into the development board, get our development environment up and running, and start working on the in-flight software. At the same time, we’ll be designing our own custom board to interface with all the onboard sensors and components. Once it comes back from the circuit board fabricator, we’ll detach the CPU module, snap it on to our custom board, and we’ll be ready to roll.
Special thanks go to WEEF for their support in funding this purchase, and we’ll keep you updated when more components arrive.
Proposal Presentation
Posted by Scott Kuo in Presentations on March 23, 2009
Our fourth-year design project proposal presentation was an overall success today even taken into consideration of a few scheduling and technology mishaps. We are posting the presentation slides here for those who couldn’t make it out today. To reduce the file size, I have taken out our very inspiring multimedia presentations, which I’d like to think of as value-added bonus for those who were in the audience this morning.
Proposal Presentation – [PDF]
System Requirements Specification
Posted by Scott Kuo in Documentation on March 16, 2009
The long awaited Project IRIS System Requirements Specification has been delivered electronically today. We have worked diligently in elicitating the requirements and constraints of the enormous project that we are about to take on.
This 58-page long document will tell you more than you need to know about the project along with some guidelines for students who wish to repeat this endeavor and to improve upon this project in the future.
Project IRIS SyRS – [PDF download]
IRIS I Concept Preview
Posted by Scott Kuo in Engineering on March 13, 2009

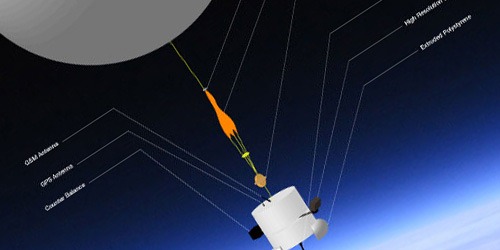

Here’s a small preview to our IRIS I assembly, which is the payload that will be traveling up to the lower stratosphere with our electronics components.
If you want to see the full design, you’ll have to come to our FYDP proposal presentation in RCH 105 at 8:30 AM on March 23rd, 2009!
WEEF Presentation
Posted by Scott Kuo in Presentations on March 5, 2009
Our team have just made a presentation to the WEEF funding committee earlier this evening. We are hoping to include WEEF to our growing portfolio of sponsoring corporations and organizations to fund our pricey project. :o)
You can view a copy of slides at the link below.
WEEF Funding Proposal – PowerPoint Presentation
